High-Density 12G/3G/HD-SDI Long-Haul Fiber Optic Transmission
Designed for ultra-high-definition broadcasting and high-bandwidth Pro AV routing, the Yukuan YUK100-UHD Series transmits up to 8 channels of uncompressed 12G-SDI video across a single-core optical fiber[cite: 9]. Fully downward compatible with 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI signals, the YUK100-UHD series provides ultra-low latency long-distance signal extension up to 100 kilometers over single-mode fiber infrastructure[cite: 9].
Key Features & Capabilities

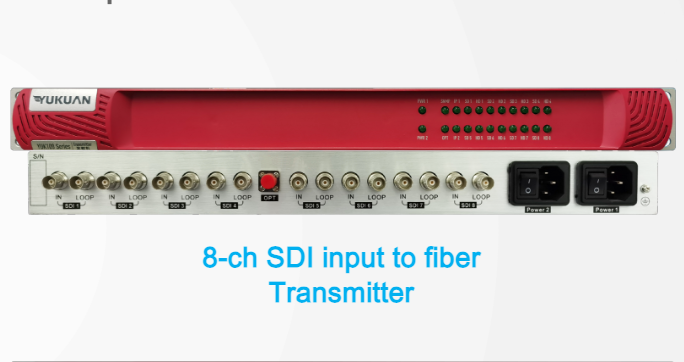

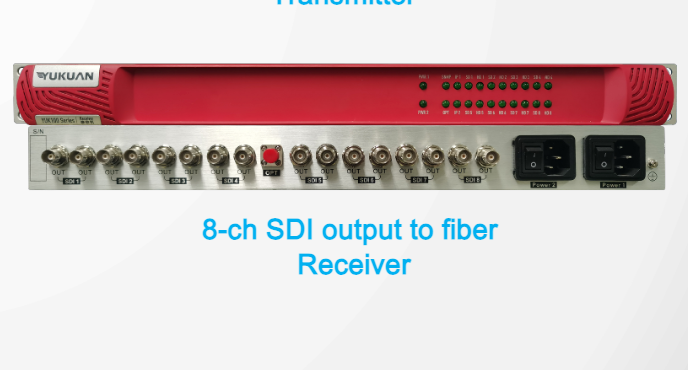

- Flexible Channel Configuration: Supports 1 to 8 unidirectional channels or 1 to 4 bidirectional 12G/3G/HD-SDI channels over a single-core optical fiber[cite: 9].
- 100 KM Transmission Reach: Provides reliable, broadcast-quality optical pass-through across distances up to 100 KM on single-mode fiber (or multi-mode fiber)[cite: 9].
- Full Signal Protocol Compatibility: Downward compatible with 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI stream formats[cite: 9].

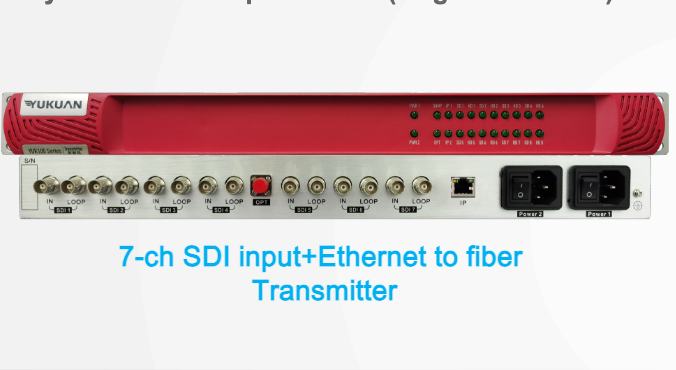

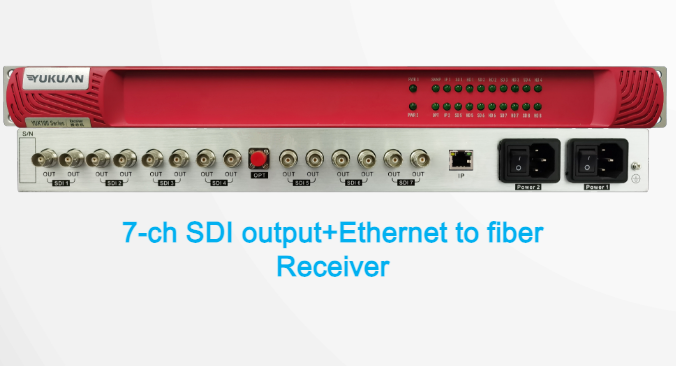

- Optional Data Interfaces: Available with integrated IP Ethernet network extension, as well as RS232 and RS485 serial control channels[cite: 9].
- Redundant Power Architecture: Built-in dual AC power supply layout ensures continuous operational reliability for mission-critical installations[cite: 9].
Application Scenarios
The YUK100-UHD series is optimized for high-density video transport across[cite: 9]:
- Outside Broadcast (OB) Vans & Remote Live Sports Production[cite: 9]
- Television Station MCR / PCR Fiber Infrastructure[cite: 9]
- Stadium & Large Venue Video Trunking[cite: 9]
- Enterprise & Campus-Wide Ultra-HD Video Matrix Networks[cite: 9]
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Series Model | Yukuan YUK100-UHD Series[cite: 9] |
| Channel Capacity | 1 to 8 Unidirectional Channels OR 1 to 4 Bidirectional Channels[cite: 9] |
| Supported Signal Standards | 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, DVB-ASI[cite: 9] |
| Optical Medium | 1-Core Single Mode Fiber (or Multi-Mode Fiber)[cite: 9] |
| Max Transmission Distance | Up to 100 KM (Single Mode Fiber)[cite: 9] |
| Auxiliary Signals (Optional) | Ethernet, RS232, RS485 Control Data Pass-Through[cite: 9] |
| Power Supply | Dual Redundant AC Power Supplies[cite: 9] |
