Ultra-Compact 12G/3G/HD-SDI Optical Fiber Transmission System

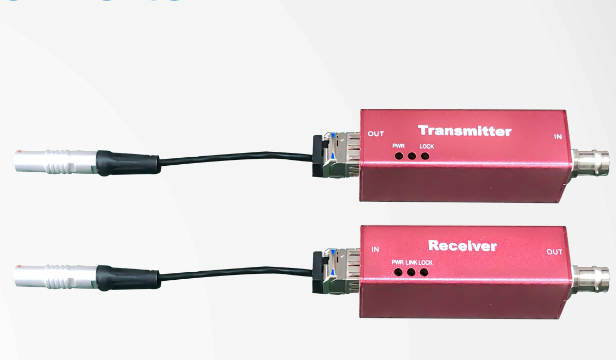

The Yukuan YUK100-01-M Series provides reliable, broadcast-quality optical conversion for 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, and DVB-ASI signals over single-mode optical fiber[cite: 7]. Built with an ultra-small micro-architecture body design (finger-length footprint), this mini converter is engineered for flexible deployment directly on camera rigs, field production units, or high-density rack setups[cite: 7].
Key Features & Capabilities
- Micro-Architecture Footprint: Ultra-compact design with a finger-length body for effortless mounting on cameras and tight equipment setups[cite: 7].
- Modular SFP Optical Interface: Equipped with a hot-swappable SFP optical port for fast module replacement and field maintenance[cite: 7].
- 20 KM Long-Range Transmission: Extends uncompressed 12G/3G-SDI video streams up to 20 kilometers across single-mode fiber optic cabling without signal degradation or latency[cite: 7].
- Broad Protocol Support: Supports single-channel 12G/6G/3G/HD/SD-SDI and DVB-ASI signal pass-through for complete system flexibility[cite: 7].
- Full SMPTE Broadcast Compliance: Fully compliant with SMPTE259M, SMPTE297M, SMPTE310, SMPTE305 (HDTI), SMPTE344, SMPTE292M, SMPTE424M, SMPTE ST 2081-1, and SMPTE ST 2082-1 standards[cite: 7].
Application Scenarios
The YUK100-01-M series is ideal for professional broadcast and Pro AV signal routing[cite: 7]:
- Outside Broadcast (OB) Vans & Live Sports Production Links[cite: 7]
- Television Studio Central Control Rooms & Headends[cite: 7]
- Stadium & Large Venue Long-Distance Video Backhaul[cite: 7]
- Auditorium & Medical Facility HD Video Distribution[cite: 7]
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Model | YUK100-01-M (Transmitter / Receiver Pair)[cite: 7] |
| Form Factor | Micro-architecture design (one finger length)[cite: 7] |
| Supported Signal Standards | 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI, SD-SDI, DVB-ASI[cite: 7] |
| Optical Port Interface | Pluggable SFP Optical Interface[cite: 7] |
| Transmission Distance | 0 to 20 KM (Single Mode Fiber)[cite: 7] |
| SMPTE Compliance | SMPTE259M, SMPTE297M, SMPTE310, SMPTE305 (HDTI), SMPTE344, SMPTE292M, SMPTE424M, SMPTE ST 2081-1, SMPTE ST 2082-1[cite: 7] |
| System Integration | Compatible with YUK700-100 Multi-Channel Central Receiver System[cite: 7] |
